Certification: Certification cETL Certification EPA
Model: p03601

Gas Portable Generator 4550W Recoil Start 120V

SERIES Performance
TYPE Open Frame Generator

The FIRMAN P03601 is part of one of our most popular series of powerful generators. With 3650 watts running at 67dB with a recoil starting system, you get the power you deserve and need. Our Max Pro Series 208cc engine runs cool and efficient thanks to the Phoenix Fat Head Block. Equipped with a 5 gallon fuel tank providing 14 hours of run-time, the P03601 is also Canada emissions certified. Easy information is at your fingertips with a 4-in-1 data minder measuring Volts, Hertz, Hrs and low oil indicator. With a durable roll cage frame design, the P03601 is a classic workhorse to get the job done.

FIRMAN LEGENDARY POWER

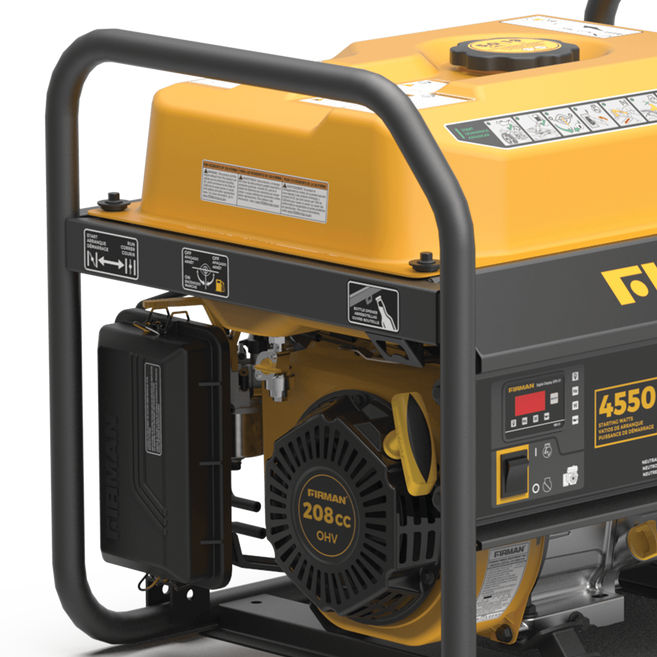

  • 208cc engine
  • Recoil start
  • Low oil shut off
  • Cast iron sleeve
  • Running watts 3650W
  • Starting watts 4450W
  • 120 Volts

LEADING FUEL CAPACITY AND RUN TIME

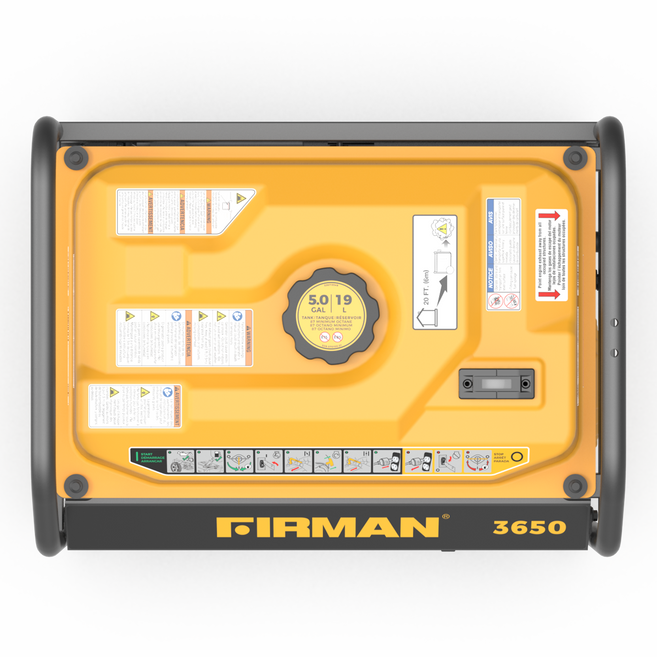

  • 5-gallon steel tank
  • Up to 14 hours of run time at 50% load
  • Fuel gauge
  • Weight: 120 lbs
  • 67 dB ¼ load

ALL OF THE FEATURES YOU EXPECT FROM FIRMAN

3-year warranty

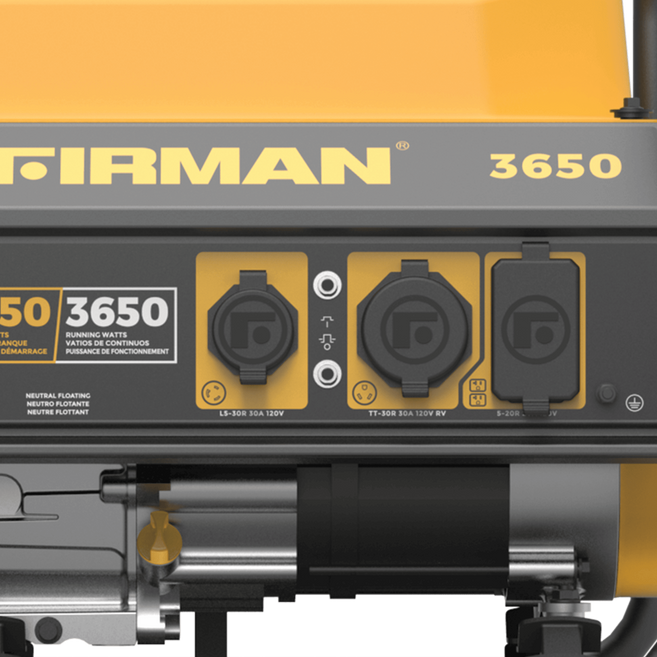

RV ready multi-feature control panel

  • (1) 5-20R 120V 20A DUPLEX
  • (1) L5-30R 120V 30A TWISTLOCK
  • (1) TT-30R 120V 30A TWISTLOCK

208CC

FIRMAN Engine

3650

Running Watts

4550

Starting Watts

5 Gallon Gas Tank

14 Hour Run Time

Specifications

Certifications
CARB Certified NO
EPA Certified YES
cETL Certified YES
NOM Certified NO
UL Certified NO
CARB Certified NO
EPA Certified YES
cETL Certified YES
NOM Certified NO
UL Certified NO
Output
Running Watts 3650
Starting Watts 4550
AC Voltage 120
Frequency (Hertz) 60
Decibels 67dB 1/2 load
Run Time 14hrs
THD @ Full Load 25%
Running Watts 3650
Starting Watts 4550
AC Voltage 120
Frequency (Hertz) 60
Decibels 67dB 1/2 load
Run Time 14hrs
THD @ Full Load 25%
Control Panel
Recoil Start YES
5-20R 120V 20A DUPLEX 1
L5-30R 120V 30A TWISTLOCK 1
TT-30R 120V 30A RV 1
Recoil Start YES
5-20R 120V 20A DUPLEX 1
L5-30R 120V 30A TWISTLOCK 1
TT-30R 120V 30A RV 1
Machine
Low Oil Shutoff YES
Power Stream Alternator YES
Cast Iron Sleeve YES
Low Oil Shutoff YES
Power Stream Alternator YES
Cast Iron Sleeve YES
Fuel System
Fuel Gas
Tank Size 5
Steel/Plastic STEEL
Fuel Gas
Tank Size 5
Steel/Plastic STEEL

Packaging

Unit
UPC 840876136010
Unit Dimensions 23.2x17.8x18.6
Unit Length 23.2
Unit Width 17.8
Unit Height 18.6
Unit Weight 101.5
UPC 840876136010
Unit Dimensions 23.2x17.8x18.6
Unit Length 23.2
Unit Width 17.8
Unit Height 18.6
Unit Weight 101.5
Carton
Carton Dimensions 24x18.1x19.9
Carton Length 24
Carton Width 18.1
Carton Height 19.9
Carton Weight 110
Carton Dimensions 24x18.1x19.9
Carton Length 24
Carton Width 18.1
Carton Height 19.9
Carton Weight 110

Manuals

P03601 Operators Manual

download

P03601 Electrical Schematic

download

P03601 Quick Start / Stop Guide

download
