Certification: Certification cETL Certification EPA
Model: wh03662of

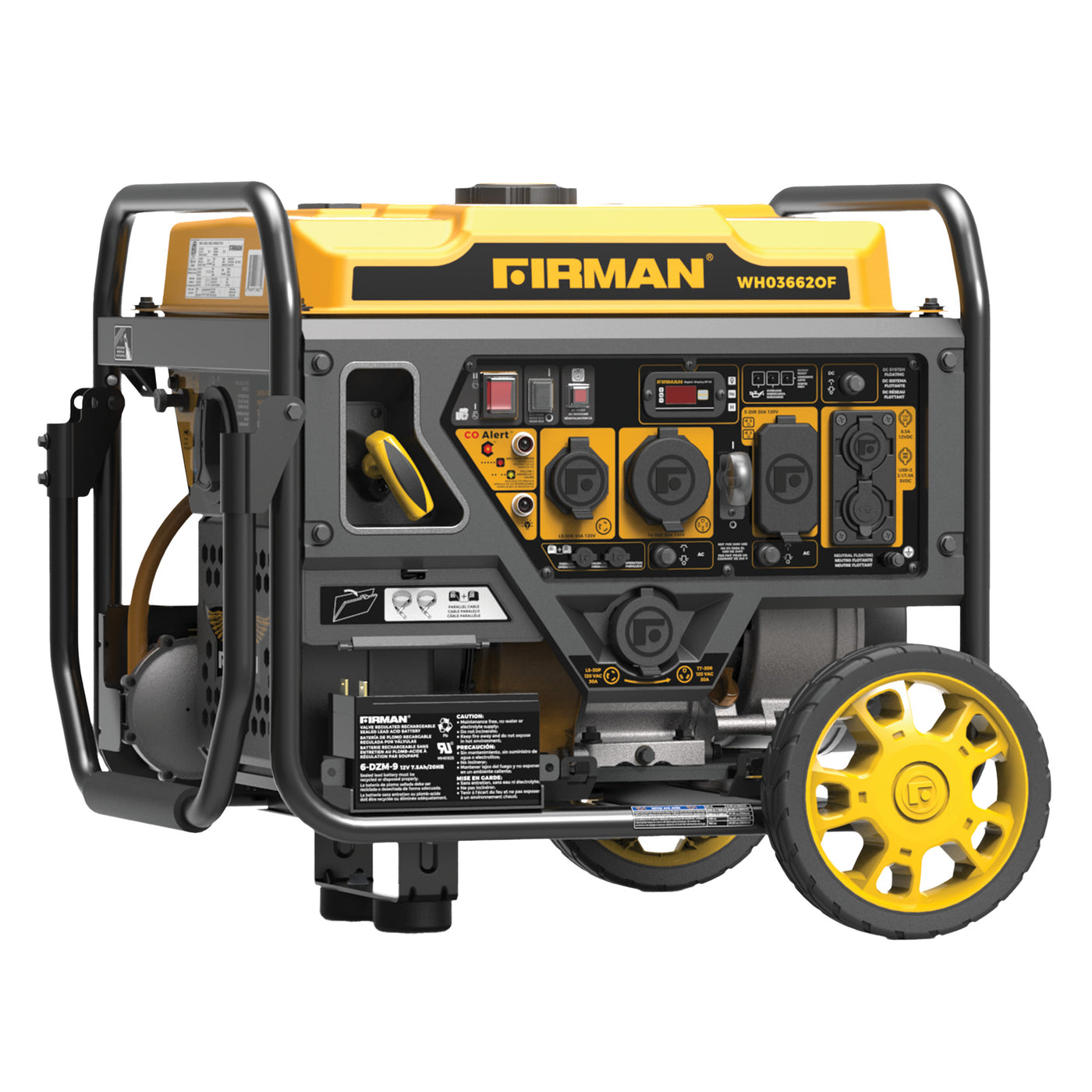

Dual Fuel Open Frame Inverter 4500W Electric Start With CO Alert

SERIES Inverter,Hybrid
TYPE Open Frame Inverter

Fuel-efficient and longer run time is a powerful combo at FIRMAN. Running on both gasoline and propane for the best of both worlds.

The FIRMAN WH03662OF portable inverter generator provides clean power for electronics and sensitive equipment. Whatever your needs might be — whether for a family camping trip, an off-grid cabin, or your job site — this generator is ready to work. Includes a 50Amps outlet.

You can trust FIRMAN to give you a hand when you need it most.

The WH03662OF comes with an engine oil bottle, oil funnel, spark plug wrench, a double open-ended wrench (10mm,12mm), 12V battery cable, LPG regulator with hose holder, adaptor, parallel cable and holder.

Dual Fuel Open Frame Inverter 4400W Electric Start with CO ALERT

Similar Item

WH03562OF

LEGENDARY FIRMAN ENGINEERING

  • 208cc engine
  • Recoil start
  • Electric start
  • Low oil shut off
  • Cast iron sleeve
  • Running watts 3650W (GAS), 3300W (LPG)
  • Starting watts 4500W (GAS), 4100 (LPG)
  • 120 volts


PERFORMANCE IN A LEAGUE OF ITS OWN

  • Up to 25 hours of runtime at 25% load
  • 6-gallon tank
  • Weight: 119 lbs
  • 67dB ¼ load

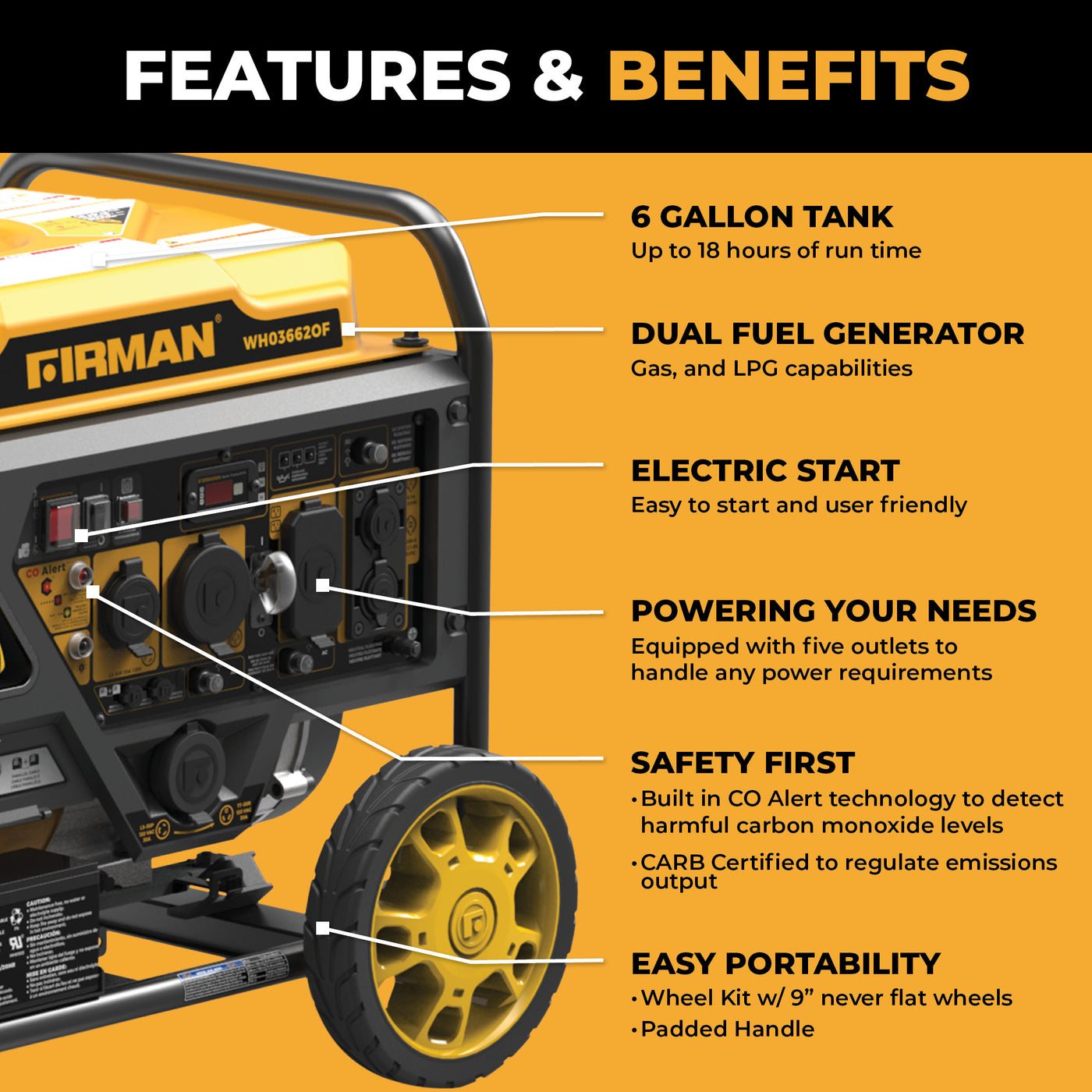

FEATURES YOU EXPECT FROM FIRMAN

3-year warranty

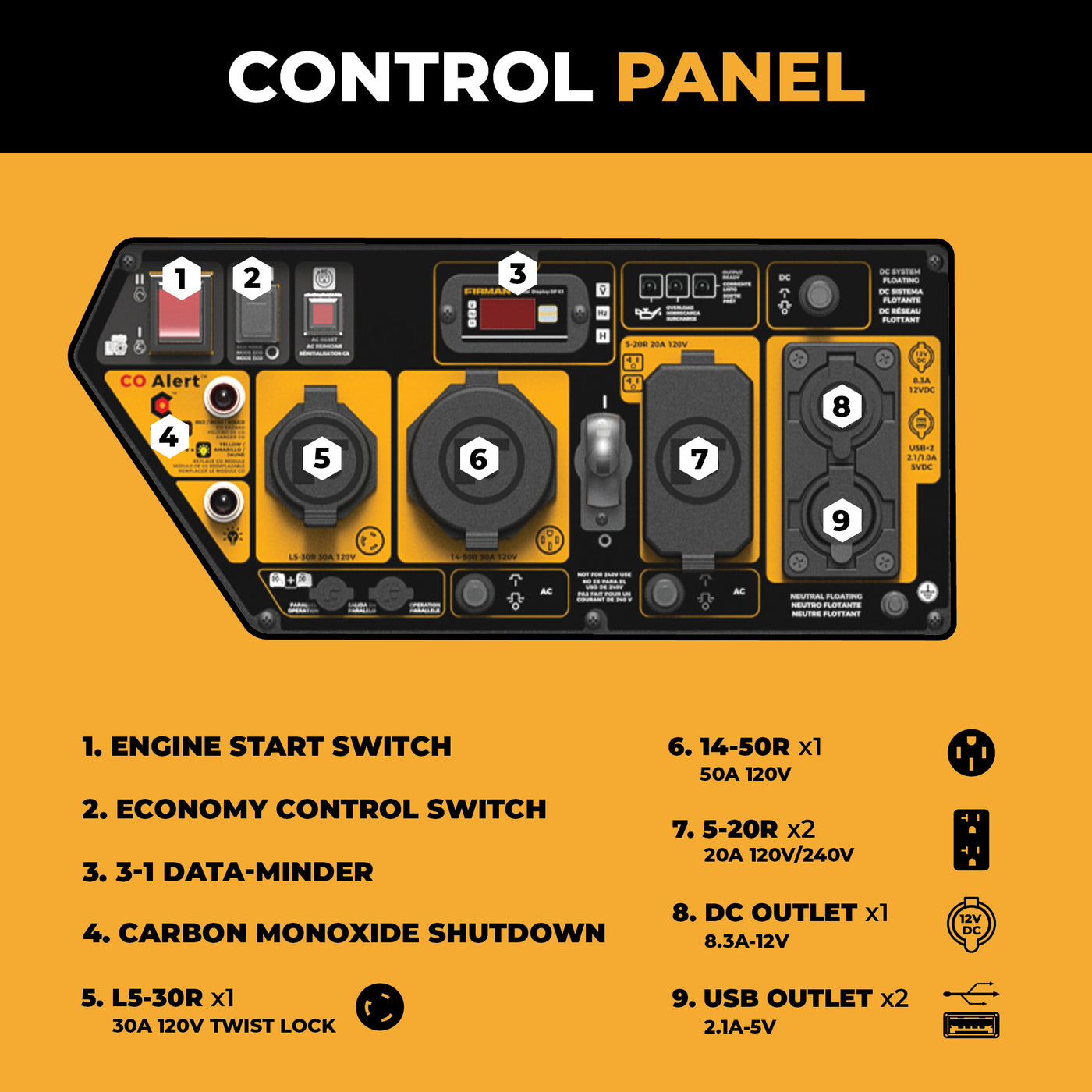

Multi-featured control panel with covered outlets

  • (1) 5-20R 120V 20A DUPLEX

  • (1) L5-30R 120V 30A TWISTLOCK

  • (1) 14-50R 120V/240V 50A (30.4A/120V/3650W)

  • (1) USB-A (2.1A/5V DC/10W)

  • (1) 12V DC Power Port/Plug (8.3A/12V DC/100W)

Running Watts

3650 Gas / 3300 LPG

Starting Watts

4500 Gas / 4100 LPG

208cc

FIRMAN Engine

6 Gallon Gas Tank

22 Hr Run Time

Specifications

Certifications
CARB Certified No
EPA Certified Yes
cETL Certified Yes
NOM Certified No
ANSI/PGMA G300-2018 Yes
UL Certified No
CARB Certified No
EPA Certified Yes
cETL Certified Yes
NOM Certified No
ANSI/PGMA G300-2018 Yes
UL Certified No
Output
Running Watts 3650 Gas / 3300 LPG
Starting Watts 4500 Gas / 4100 LPG
AC Voltage 120
Frequency (Hertz) 0
Decibels 69dB @ 1/4 load
Run Time Up to 18 Hrs
THD @ Full Load 3%
Running Watts 3650 Gas / 3300 LPG
Starting Watts 4500 Gas / 4100 LPG
AC Voltage 120
Frequency (Hertz) 0
Decibels 69dB @ 1/4 load
Run Time Up to 18 Hrs
THD @ Full Load 3%
Control Panel
Recoil Start Yes
Electric Start Yes
5-20R 120V 20A DUPLEX 1
L5-30R 120V 30A TWISTLOCK 1
14-50R 120V/240V 50A (30.4A/120V/3650W) 1
USB-A (2.1A/5V DC/10W) 1
12V DC Power Port/Plug (8.3A/12V DC/100W) 1

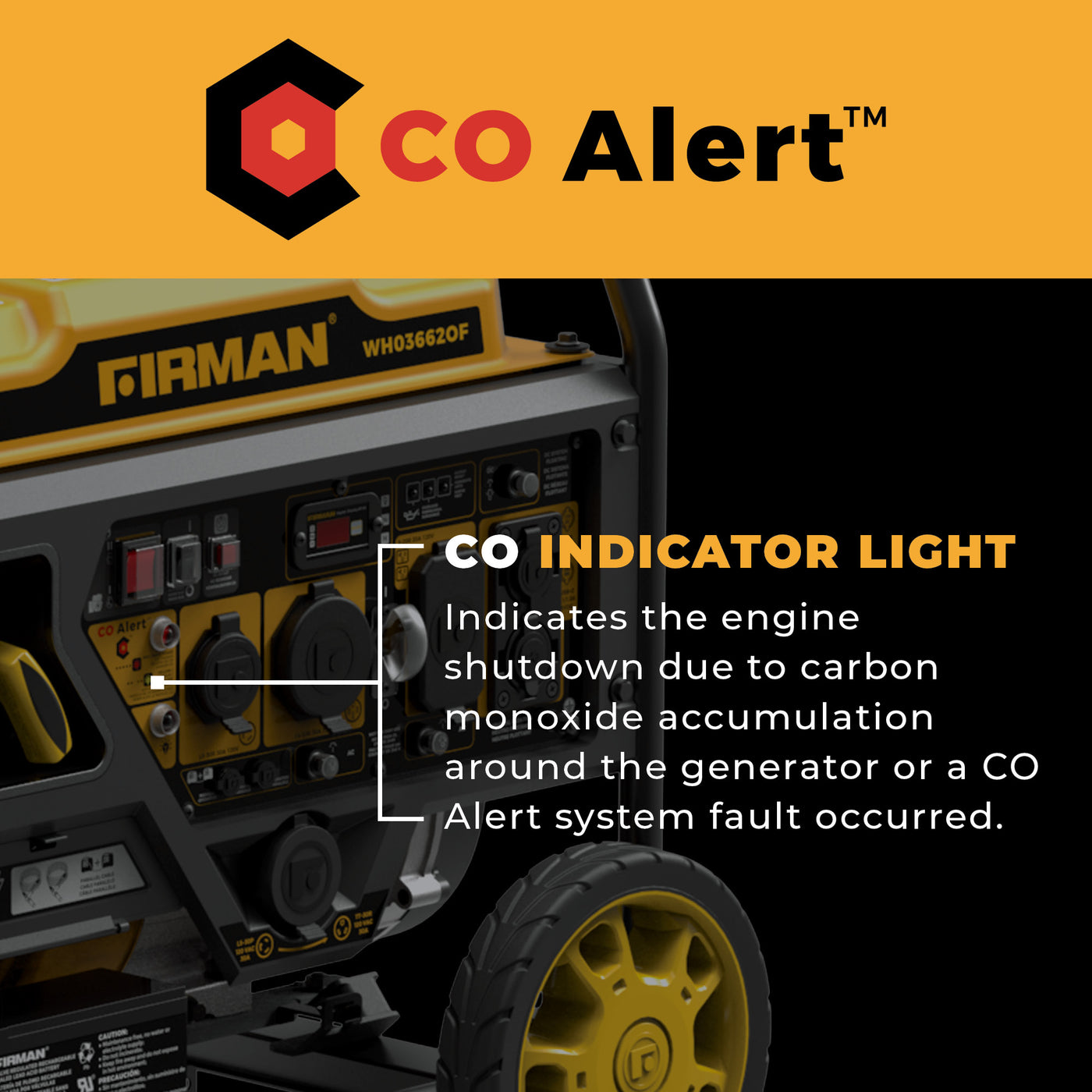

CO Alert Yes
Recoil Start Yes
Electric Start Yes
5-20R 120V 20A DUPLEX 1
L5-30R 120V 30A TWISTLOCK 1
14-50R 120V/240V 50A (30.4A/120V/3650W) 1
USB-A (2.1A/5V DC/10W) 1
12V DC Power Port/Plug (8.3A/12V DC/100W) 1
CO Alert Yes
Machine
Low Oil Shutoff Yes
Power Stream Alternator Yes
Cast Iron Sleeve Yes
Low Oil Shutoff Yes
Power Stream Alternator Yes
Cast Iron Sleeve Yes
Fuel System
Fuel Gas & LPG
Tank Size 6 Gal
Steel/Plastic Steel Gas Tank
Fuel Gas & LPG
Tank Size 6 Gal
Steel/Plastic Steel Gas Tank
Wheel Kit
Wheels 9" Never Flat Wheels
Handle Single Folding Handle w/Grip
Wheels 9" Never Flat Wheels
Handle Single Folding Handle w/Grip

Packaging

Unit
UPC 840876136621

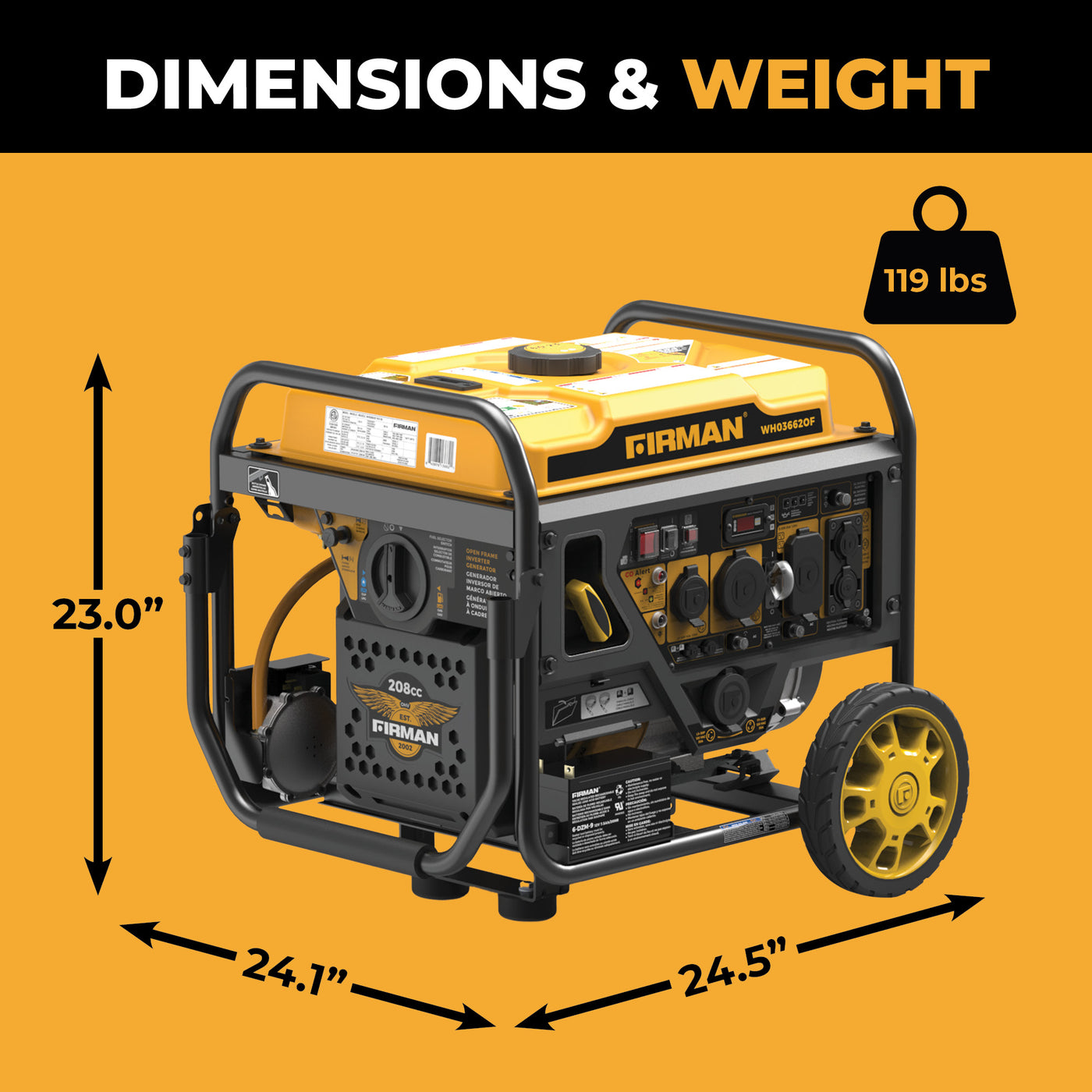

Unit Dimensions 24.5" x 24.1" x 23"
Unit Length 24.5"
Unit Width 24.1"
Unit Height 23"
Unit Weight 119 Lbs
UPC 840876136621
Unit Dimensions 24.5" x 24.1" x 23"
Unit Length 24.5"
Unit Width 24.1"
Unit Height 23"
Unit Weight 119 Lbs
Carton
Carton Dimensions 28.7" x 21.1" x 21.3"
Carton Length 28.7"
Carton Width 21.1"
Carton Height 21.3"
Carton Weight 132 Lbs

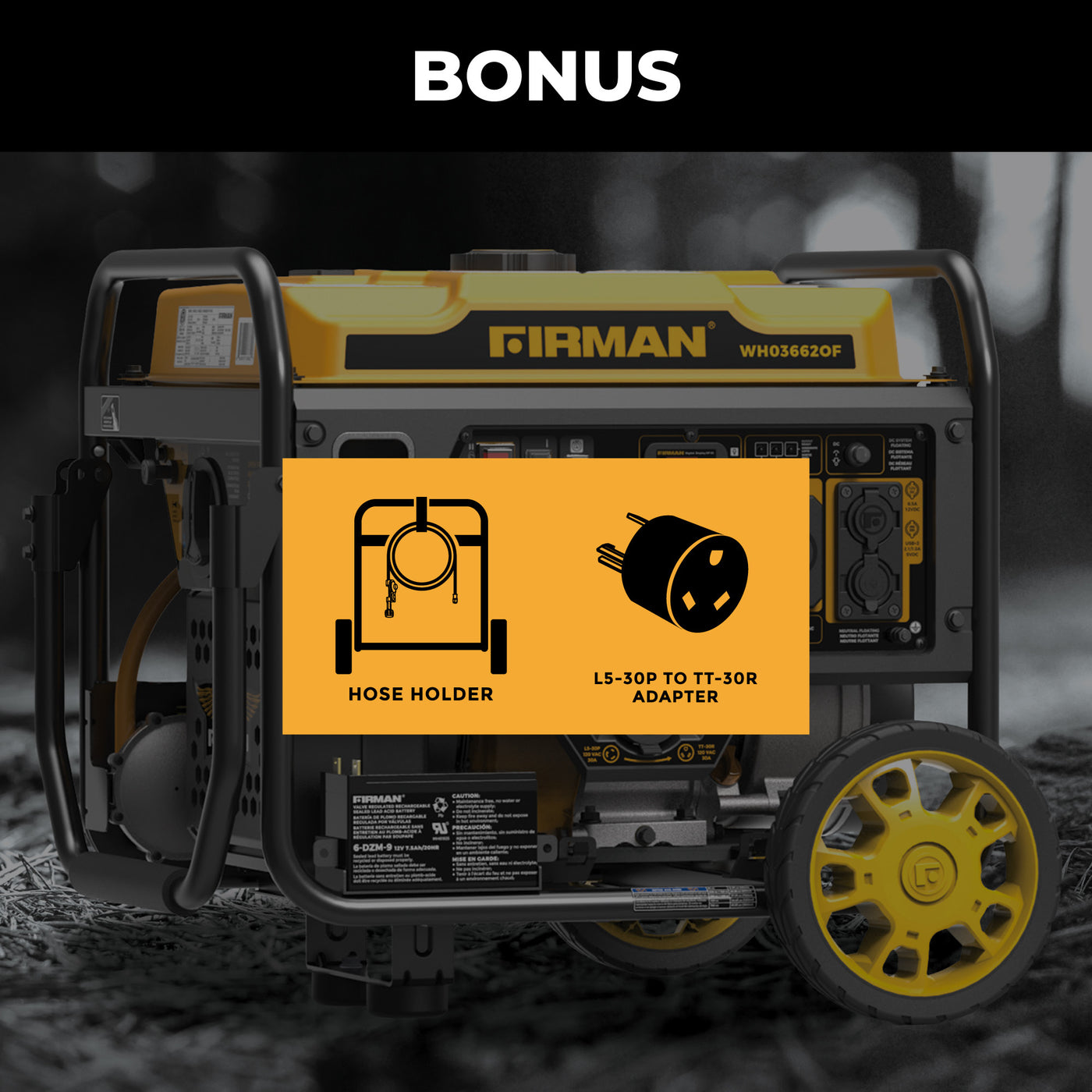

Bonus Items L5-30P to TT-30R Adapter
Bonus Items Velcro Strap Hose Holder
Carton Dimensions 28.7" x 21.1" x 21.3"
Carton Length 28.7"
Carton Width 21.1"
Carton Height 21.3"
Carton Weight 132 Lbs
Bonus Items L5-30P to TT-30R Adapter
Bonus Items Velcro Strap Hose Holder
