Certification: Certification cETL Certification EPA
Model: p05703

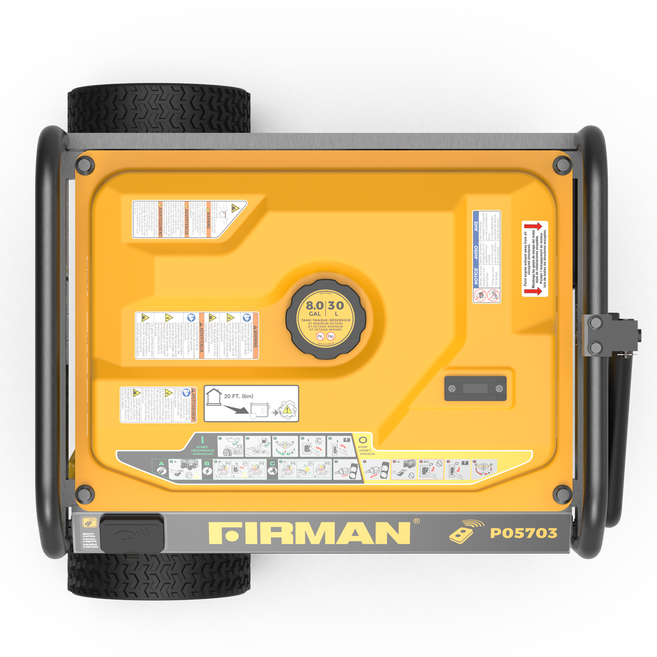

Gas Portable Generator 7125W Remote Start 120/240V

SERIES Performance
TYPE Open Frame Generator

At FIRMAN, we are constantly working to give you the best of the best powerhouses as leaders in the generator industry.

The P05703 portable generator features the brilliant design and quality you can expect from our popular FIRMAN performance series.

Offering 7125 starting watts and 5700 running watts,120/240V of power, the P05703 is ideal for home backup power needs (coupled with a transfer switch), job sites, home projects, and whatever life throws your way!

FIRMAN LEGENDARY POWER

  • 389cc engine
  • Recoil start
  • Electric start
  • Remote start
  • Low oil shut off
  • Cast iron sleeve
  • Running watts 5700W
  • Starting watts 7125W
  • 120/240 volts

LEADING FUEL CAPACITY AND RUN TIME

  • 8-gallon steel tank
  • Up to 13 hours of run time at 50% load
  • Fuel gauge
  • Weight: 203 lbs
  • 81 dB at 7m and 75% load

ALL OF THE FEATURES YOU EXPECT FROM FIRMAN

3-year warranty

Multi-feature control panel with covered outlets

  • (2) 5-20R 120V 20A DUPLEX
  • (1) L5-30R 120V 30A TWISTLOCK
  • (1) L14-30R 120V/240V 30A TWISTLOCK (23.8A/240V/5700W)

389CC

FIRMAN Engine

5700

Running Watts

7125

Starting Watts

8 Gallon Gas Tank

13 Hour Run Time

Specifications

Certifications
CARB Certified NO
EPA Certified YES
cETL Certified YES
NOM Certified NO
UL Certified NO
CARB Certified NO
EPA Certified YES
cETL Certified YES
NOM Certified NO
UL Certified NO
Output
Running Watts 5700
Starting Watts 7125
AC Voltage 120/240
Frequency (Hertz) 60
Decibels 72dB 1/2 load
Run Time 13hrs
THD @ Full Load 25%
Running Watts 5700
Starting Watts 7125
AC Voltage 120/240
Frequency (Hertz) 60
Decibels 72dB 1/2 load
Run Time 13hrs
THD @ Full Load 25%
Control Panel
Recoil Start YES
Electric Start YES
Remote Start YES
5-20R 120V 20A DUPLEX 2
L5-30R 120V 30A TWISTLOCK 1
L14-30R 120V/240V 30A TWISTLOCK 1
Recoil Start YES
Electric Start YES
Remote Start YES
5-20R 120V 20A DUPLEX 2
L5-30R 120V 30A TWISTLOCK 1
L14-30R 120V/240V 30A TWISTLOCK 1
Machine
Low Oil Shutoff YES
Power Stream Alternator YES
Cast Iron Sleeve YES
Low Oil Shutoff YES
Power Stream Alternator YES
Cast Iron Sleeve YES
Fuel System
Fuel Gas
Tank Size 8
Steel/Plastic STEEL
Fuel Gas
Tank Size 8
Steel/Plastic STEEL
Wheel Kit
Wheels 10.0" -black -plastic-flat free
Handle single folding w/grip
Wheels 10.0" -black -plastic-flat free
Handle single folding w/grip

Packaging

Unit
UPC 840876157039
Unit Dimensions 28.4x27.5x26.8
Unit Length 28.4
Unit Width 27.5
Unit Height 26.8
Unit Weight 203
UPC 840876157039
Unit Dimensions 28.4x27.5x26.8
Unit Length 28.4
Unit Width 27.5
Unit Height 26.8
Unit Weight 203
Carton
Carton Dimensions 31.9x22.1x24.4
Carton Length 31.9
Carton Width 22.1
Carton Height 24.4
Carton Weight 214
Carton Dimensions 31.9x22.1x24.4
Carton Length 31.9
Carton Width 22.1
Carton Height 24.4
Carton Weight 214

Manuals

P05703 Operators Manual

download

P05703 Quick Start / Stop Guide

download

P05703 Electrical Schematic

download
