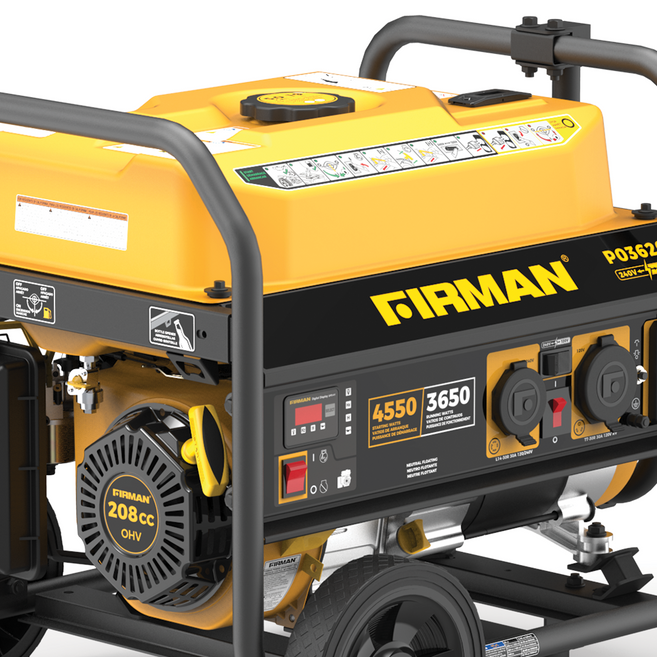

A close-up of a FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V.
Top view of a yellow and black FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V model p03620 with labels and control panel visible, ideal for camping.
Front view of a FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V with sturdy wheels and a visible engine compartment.
A yellow and black FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V with wheels, featuring control panel and multiple outlets, ideal for camping.
A yellow and black FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V.
A FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V with a yellow and black design, housed in a tubular metal frame with wheels for mobility, perfect for camping or backup power.
A FIRMAN Power Equipment gas portable generator 4550W with recoil start, on wheels with a large yellow fuel tank and a black frame, featuring visible engine parts and control panels.
Technical line drawing of a FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V with labeled dimensions, showing internal components and wheels.
Technical line drawing of a FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V with dimensions labeled, ideal for camping, viewed from the side.
Yellow and black FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V on wheels, featuring control panel with power outlets and dials.
Advertisement for a FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V featuring its key specifications including starting and running watts, tank size, run time, engine capacity, and recoil start method.
Advertisement image featuring a FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V ideal for backup power and camping with highlights on included accessories: engine oil, tool kit, oil funnel, single folding handle, and 8" never flat wheels.
A FIRMAN Power Equipment gas portable generator 4550W with recoil start and yellow casing, displaying its control panel and wheel kit, set against a light striped background, ideal for backup power.
Rear view of a FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V on a metal frame with wheels, showing the engine and various components, ideal for backup power.
A close-up of a FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V.
Top view of a yellow and black FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V model p03620 with labels and control panel visible, ideal for camping.
Front view of a FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V with sturdy wheels and a visible engine compartment.
A yellow and black FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V with wheels, featuring control panel and multiple outlets, ideal for camping.
A yellow and black FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V.
A FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V with a yellow and black design, housed in a tubular metal frame with wheels for mobility, perfect for camping or backup power.
A FIRMAN Power Equipment gas portable generator 4550W with recoil start, on wheels with a large yellow fuel tank and a black frame, featuring visible engine parts and control panels.
Technical line drawing of a FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V with labeled dimensions, showing internal components and wheels.
Technical line drawing of a FIRMAN Power Equipment Gas Portable Generator 4550W Recoil Start 120/240V with dimensions labeled, ideal for camping, viewed from the side.
01/14
Certification: Certification CARB Certification EPA
Model: p03620

Gas Portable Generator 4550W Recoil Start 120/240V
SERIES Performance
TYPE Open Frame Generator

Adventure seekers trust the FIRMAN P03620 portable generator for safe, reliable, long-lasting, and efficient power. Offering

It's a perfect solution for your job site, recreational event requiring a mobile power station, or next home project. It can also be a great home backup power source when coupled with a Transfer Switch.

FIRMAN generators let you truly prepare for whatever adventures come your way.



FIRMAN LEGENDARY POWER

  • 208cc engine
  • Recoil start
  • Low oil shut off
  • Cast iron sleeve
  • Easy oil drain
  • Running watts 3650W
  • Starting watts 4450W
  • 120/240 volts

LEADING FUEL CAPACITY AND RUN TIME

  • 5-gallon steel tank
  • Up to 14 hours of run time at 50% load
  • Fuel gauge
  • Weight: 119.5 lbs
  • 75 dB at 7m and 75% load

ALL OF THE FEATURES YOU EXPECT FROM FIRMAN

3-year warranty

RV ready multi-feature control panel

  • (1) 5-20R 120V 20A DUPLEX
  • (1) TT-30R 120V 30A TWISTLOCK
  • (1) L14-30R 120V/240V 30A TWISTLOCK (15.2A/240V/3650W)

208CC

FIRMAN Engine

3650

Running Watts

4550

Starting Watts

5 Gallon Gas Tank

14 Hour Run Time

Specifications

Certifications
CARB Certified Yes
EPA Certified Yes
cETL Certified No
NOM Certified No
UL Certified No
CARB Certified Yes
EPA Certified Yes
cETL Certified No
NOM Certified No
UL Certified No
Output
Running Watts 3,650
Starting Watts 4,550
AC Voltage 120/240
Frequency (Hertz) 60
Decibels 75 dB @ 3/4 load
Run Time 14 hours
THD @ Full Load 25%
Running Watts 3,650
Starting Watts 4,550
AC Voltage 120/240
Frequency (Hertz) 60
Decibels 75 dB @ 3/4 load
Run Time 14 hours
THD @ Full Load 25%
Control Panel
Recoil Start Yes
Electric Start No
5-20R 120V 20A DUPLEX 1
TT-30R 120V 30A RV 1
L14-30R 120V/240V 30A TWISTLOCK (15.2A/240V/3650W) 1
Recoil Start Yes
Electric Start No
5-20R 120V 20A DUPLEX 1
TT-30R 120V 30A RV 1
L14-30R 120V/240V 30A TWISTLOCK (15.2A/240V/3650W) 1
Machine
Low Oil Shutoff Yes
Power Stream Alternator
Cast Iron Sleeve Yes
Low Oil Shutoff Yes
Power Stream Alternator
Cast Iron Sleeve Yes
Fuel System
Fuel Gas
Tank Size 5 Gallons
Steel/Plastic Steel
Fuel Gas
Tank Size 5 Gallons
Steel/Plastic Steel
Wheel Kit
Wheels 8.0" -black -plastic-flat free
Handle single folding w/grip
Wheels 8.0" -black -plastic-flat free
Handle single folding w/grip

Packaging

Unit
UPC 840876136201
Unit Dimensions 24.8x21.7x21.7
Unit Length 24.8
Unit Width 21.7
Unit Height 21.7
Unit Weight 110
UPC 840876136201
Unit Dimensions 24.8x21.7x21.7
Unit Length 24.8
Unit Width 21.7
Unit Height 21.7
Unit Weight 110
Carton
Carton Dimensions 27.2x18.1x19.9
Carton Length 27.2
Carton Width 18.1
Carton Height 19.9
Carton Weight 118
Carton Dimensions 27.2x18.1x19.9
Carton Length 27.2
Carton Width 18.1
Carton Height 19.9
Carton Weight 118

Manuals

P03620 Operators Manual

download

P03620 Quick Start / Stop Guide (English)

download

P03620 Quick Start / Stop Guide (Spanish)

download

P03620 Quick Start / Stop Guide (French)

download

P03620 Electrical Schematic

download
