Certification: Certification CARB Certification cETL Certification EPA
Model: p03502

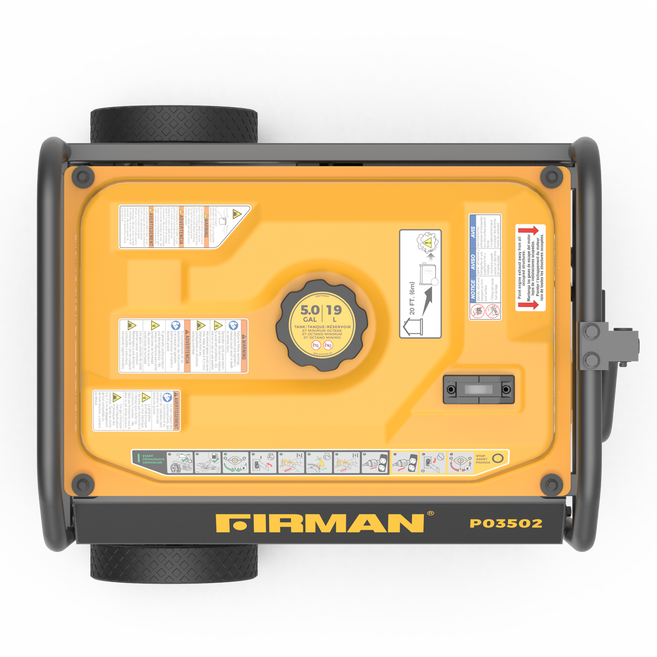

Gas Portable Generator 4450W Recoil Start 120V

SERIES Performance
TYPE Open Frame Generator

Up your generator game with the P03502 portable generator. Perfect for every occasion, this exclusive generator offers the essential tools you need to take your adventure to new heights. Best used for camping, backup power, and work.

Generating 4450 Starting Watts and 3550 Running Watts and a 5-gallon gas tank, the P03502 will run for up to 14 hours at 50% load!

The P03502 comes with engine oil bottle, oil funnel, spark plug wrench, and two double open-ended wrenches (10mm x 12mm).

Gas Portable Generator 4450W Recoil Start 120V with CO alert

FIRMAN LEGENDARY POWER

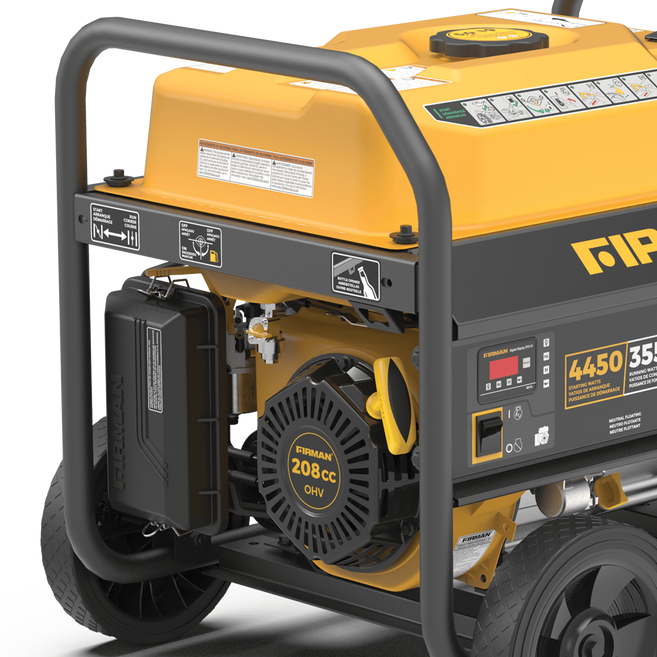

  • 208cc engine
  • Recoil start
  • Low oil shut off
  • Cast iron sleeve
  • Running watts 3550W
  • Starting watts 4450W
  • 120 Volts

LEADING FUEL CAPACITY AND RUN TIME

  • Up to 14 hours of run time at 50% load
  • 5-gallon steel tank
  • Fuel gauge
  • Weight: 108 lbs
  • 75 dB at 7m and 75% load

ALL OF THE FEATURES YOU EXPECT FROM FIRMAN

3-year warranty

RV ready multi feature control panel

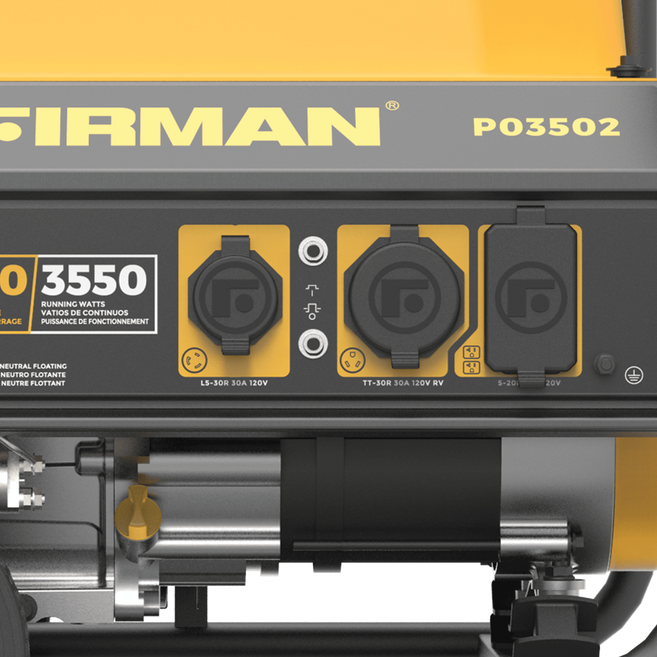

Multi-feature control panel with covered outlets

  • (1) 5-20R 120V 20A DUPLEX
  • (1) L5-30R 120V 30A TWISTLOCK (29.6A/120V/3550W)
  • (1) TT-30R 120V 30A TWISTLOCK (29.6A/120V/3550W)

208CC

FIRMAN Engine

3550

Running Watts

4450

Starting Watts

5 Gallon Gas Tank

14 Hour Run Time

Specifications

Certifications
CARB Certified YES
EPA Certified YES
cETL Certified YES
NOM Certified NO
UL Certified NO
CARB Certified YES
EPA Certified YES
cETL Certified YES
NOM Certified NO
UL Certified NO
Output
Running Watts 3550
Starting Watts 4450
AC Voltage 120
Frequency (Hertz) 60
Decibels 67dB 1/2 load
Run Time 14hrs
THD @ Full Load 25%
Running Watts 3550
Starting Watts 4450
AC Voltage 120
Frequency (Hertz) 60
Decibels 67dB 1/2 load
Run Time 14hrs
THD @ Full Load 25%
Control Panel
Recoil Start YES
5-20R 120V 20A DUPLEX 1
L5-30R 120V 30A TWISTLOCK 1
TT-30R 120V 30A RV 1
Recoil Start YES
5-20R 120V 20A DUPLEX 1
L5-30R 120V 30A TWISTLOCK 1
TT-30R 120V 30A RV 1
Machine
Low Oil Shutoff YES
Power Stream Alternator YES
Cast Iron Sleeve YES
Low Oil Shutoff YES
Power Stream Alternator YES
Cast Iron Sleeve YES
Fuel System
Fuel Gas
Tank Size 5
Steel/Plastic STEEL
Fuel Gas
Tank Size 5
Steel/Plastic STEEL
Wheel Kit
Wheels 8.0" -black -plastic-flat free
Handle single folding w/grip
Wheels 8.0" -black -plastic-flat free
Handle single folding w/grip

Packaging

Unit
UPC 840876135020
Unit Dimensions 24.8x21.7x21.7
Unit Length 24.8
Unit Width 21.7
Unit Height 21.7
Unit Weight 108.5
UPC 840876135020
Unit Dimensions 24.8x21.7x21.7
Unit Length 24.8
Unit Width 21.7
Unit Height 21.7
Unit Weight 108.5
Carton
Carton Dimensions 27.2x18.1x19.9
Carton Length 27.2
Carton Width 18.1
Carton Height 19.9
Carton Weight 117
Carton Dimensions 27.2x18.1x19.9
Carton Length 27.2
Carton Width 18.1
Carton Height 19.9
Carton Weight 117

Manuals

P03502 Operators Manual

download

P03502 Electrical Schematic

download
